MYUAV Tethered Drone Payload Dji Drone M350 Capture Net Transmitter

MYUAV Tethered Drone Payload Dji Drone M350 Capture Net Transmitter

1. Overview and Characteristics
Stable installation: Using a metal mounting bracket that can withstand the recoil after launch, paired with the drone's built-in FPV camera for aiming purposes;
Special accessories: matched with multiple sets of 3m * 3m catching nets, which can be recycled several times;
Security: One-click lock for increased usability and installation to prevent accidental injury;

2. Application
Application scenario:
Law enforcement scene, public security control, counter terrorism deterrence, rescue of wildlife.

3. Equipment parameters
Model: c;
Size: 290mm * 200mm * 120mm;
Weight: 1500g;
Interface: SKYPORT V2/S.PORT;
Control method: Pilot 2;
System power: 15W;
Working temperature: -20 ° to 60 °;
Number of channels: 1
Control distance: consistent with the communication distance of the drone;
Protection device: independent unlocking button;
Launch angle: 30 degrees downward;
Installation method: belly installation;
P HUB: Support;
Field of fire: 15m;
Net area: 9 m2;

M350 Tethered Drone Payload

Capture Net Transmitter Tethered Drone Payload

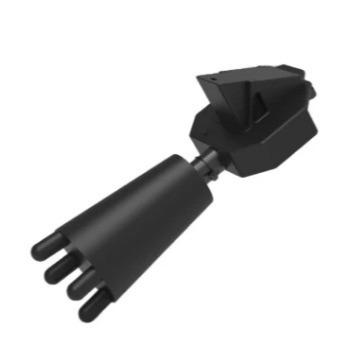

MYUAV Tethered Drone Payload Dji Drone M350 Capture Net Transmitter Images
